Top Crimp - F
! NEWS !

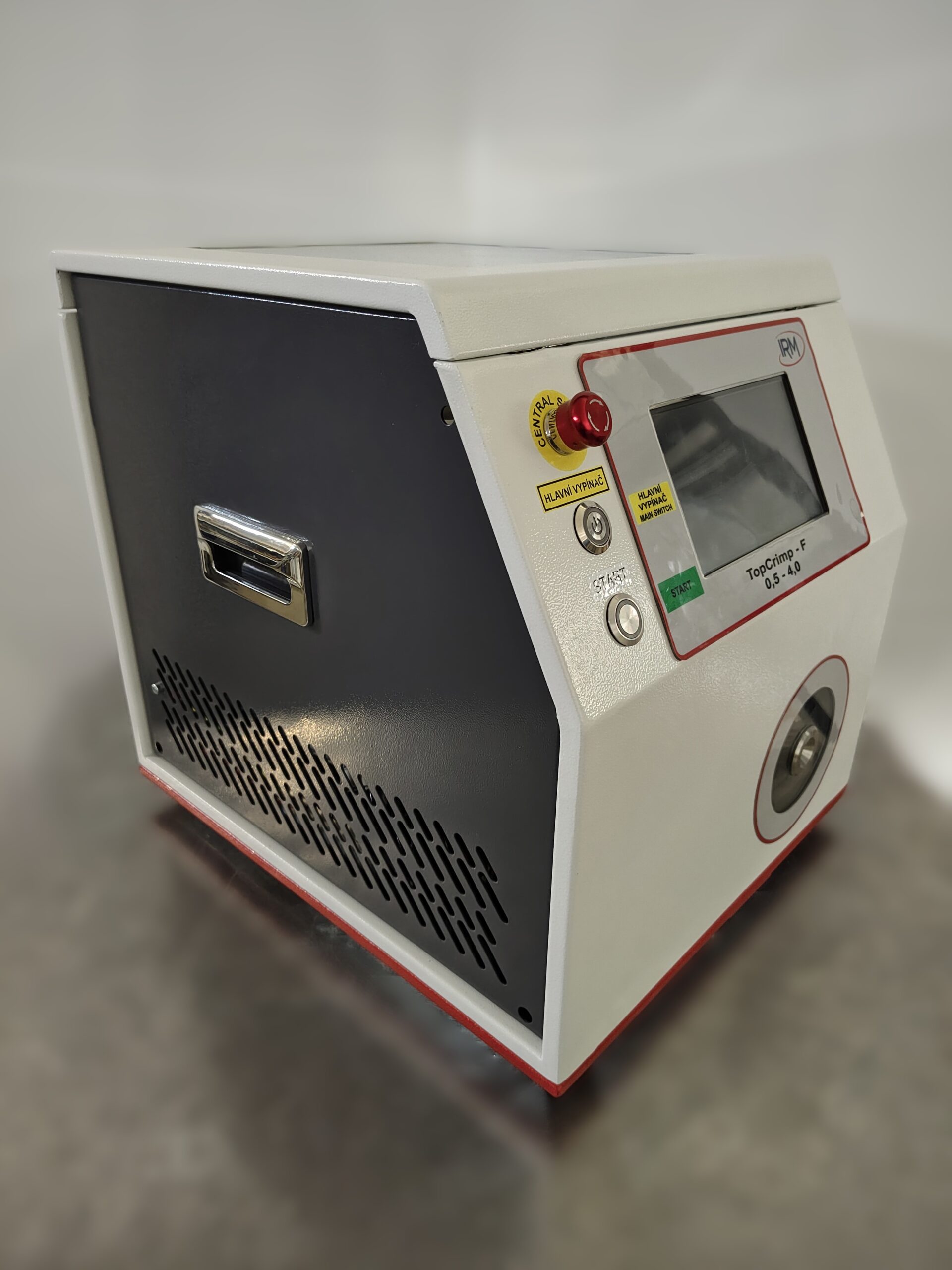

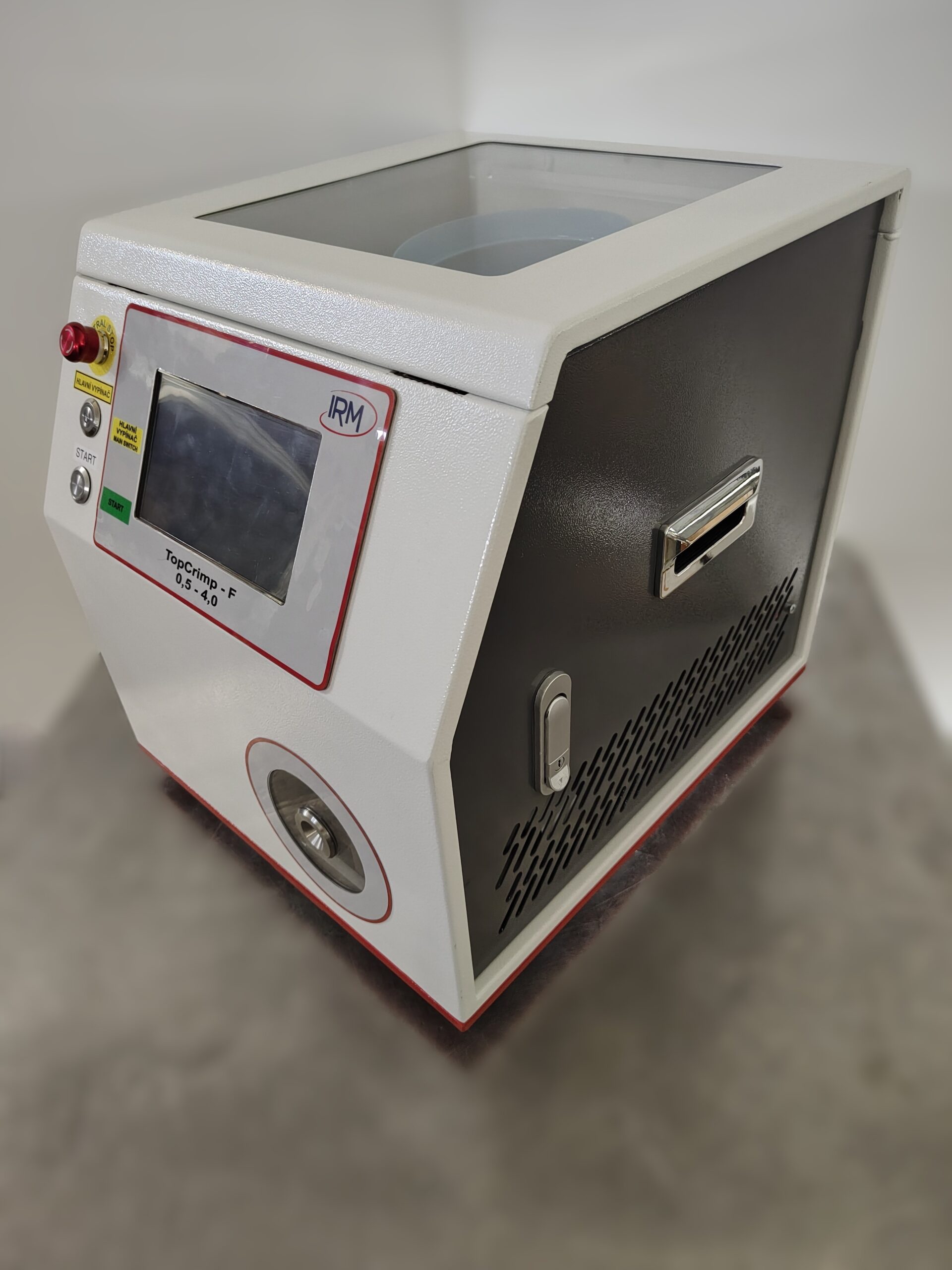

- Crimping machine for insulated ferrules
- Processable cross-sections: 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0
- The machine includes a wire stripping unit
- Stripping length: 8 mm - 16 mm
- Machine designed for loose ferrules

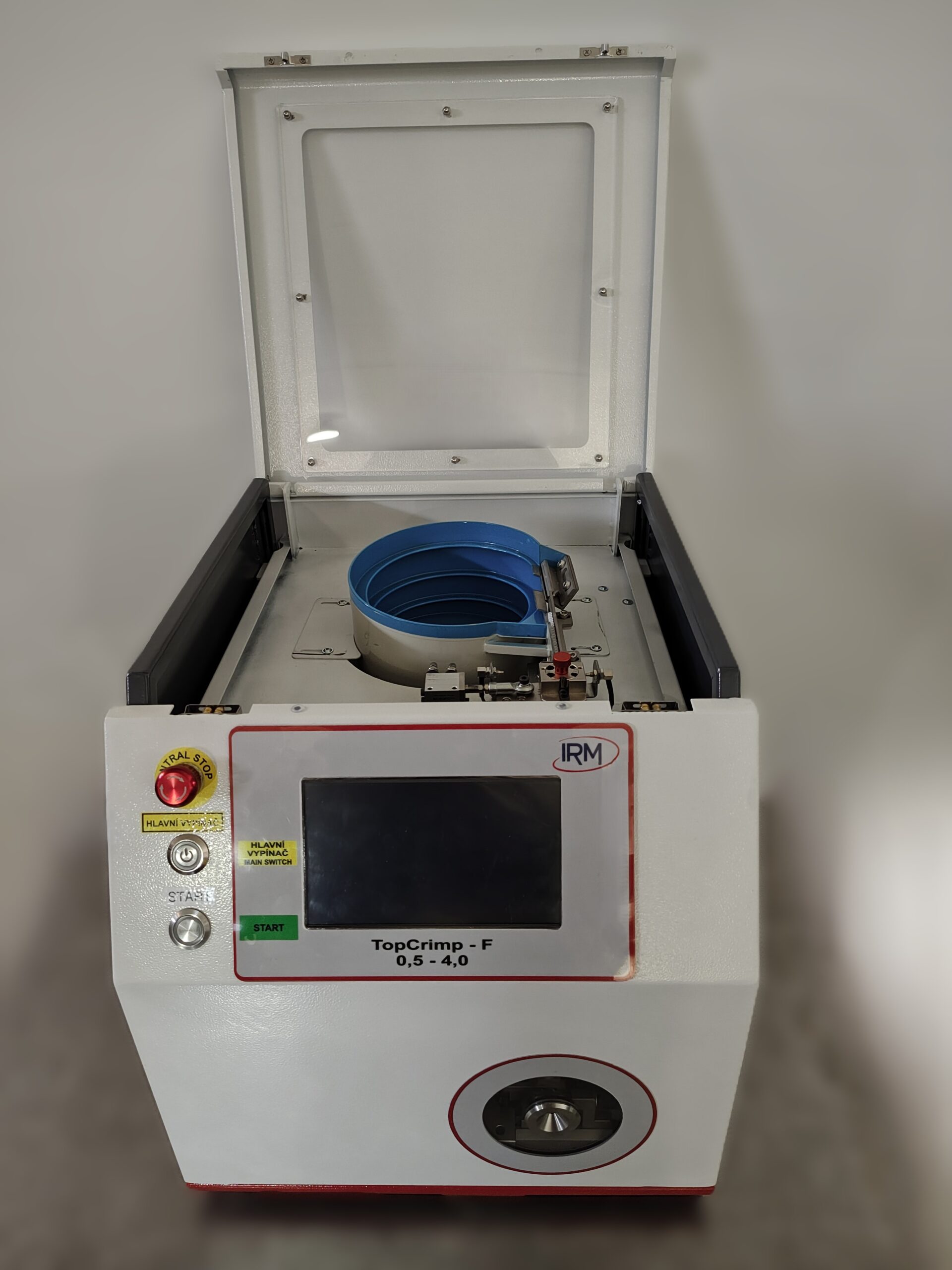

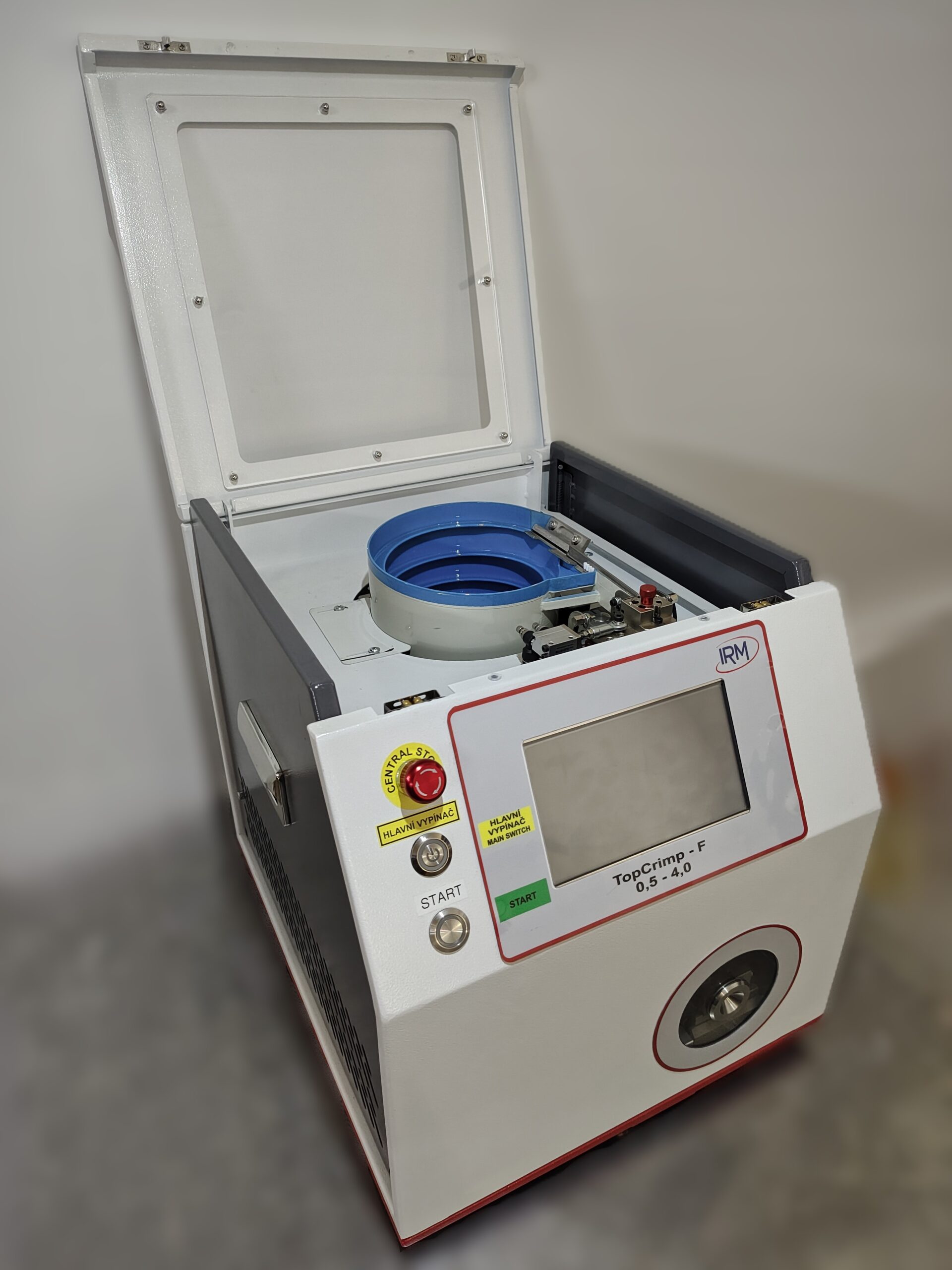

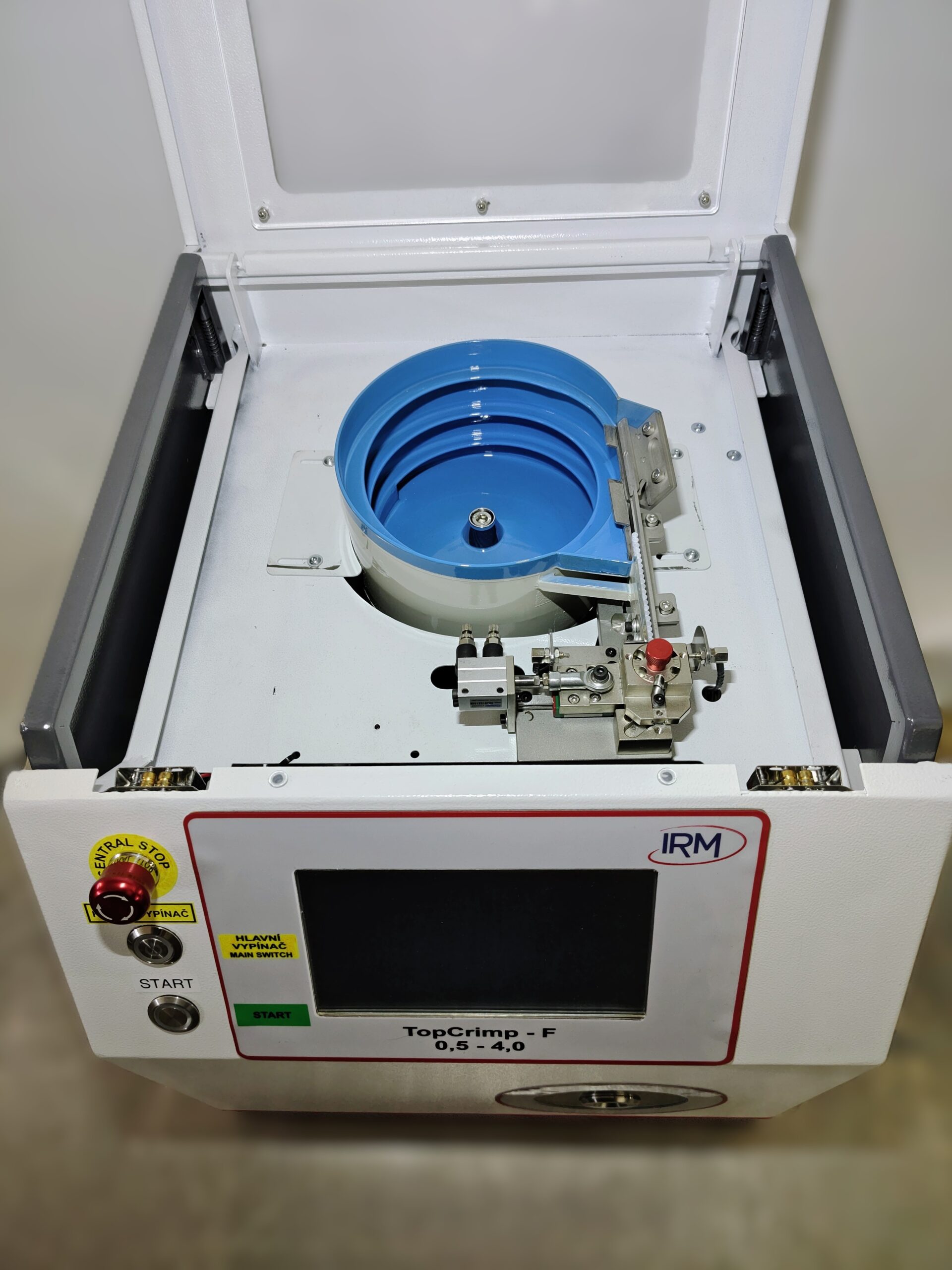

- Vibration feeding of the ferrules into the machine

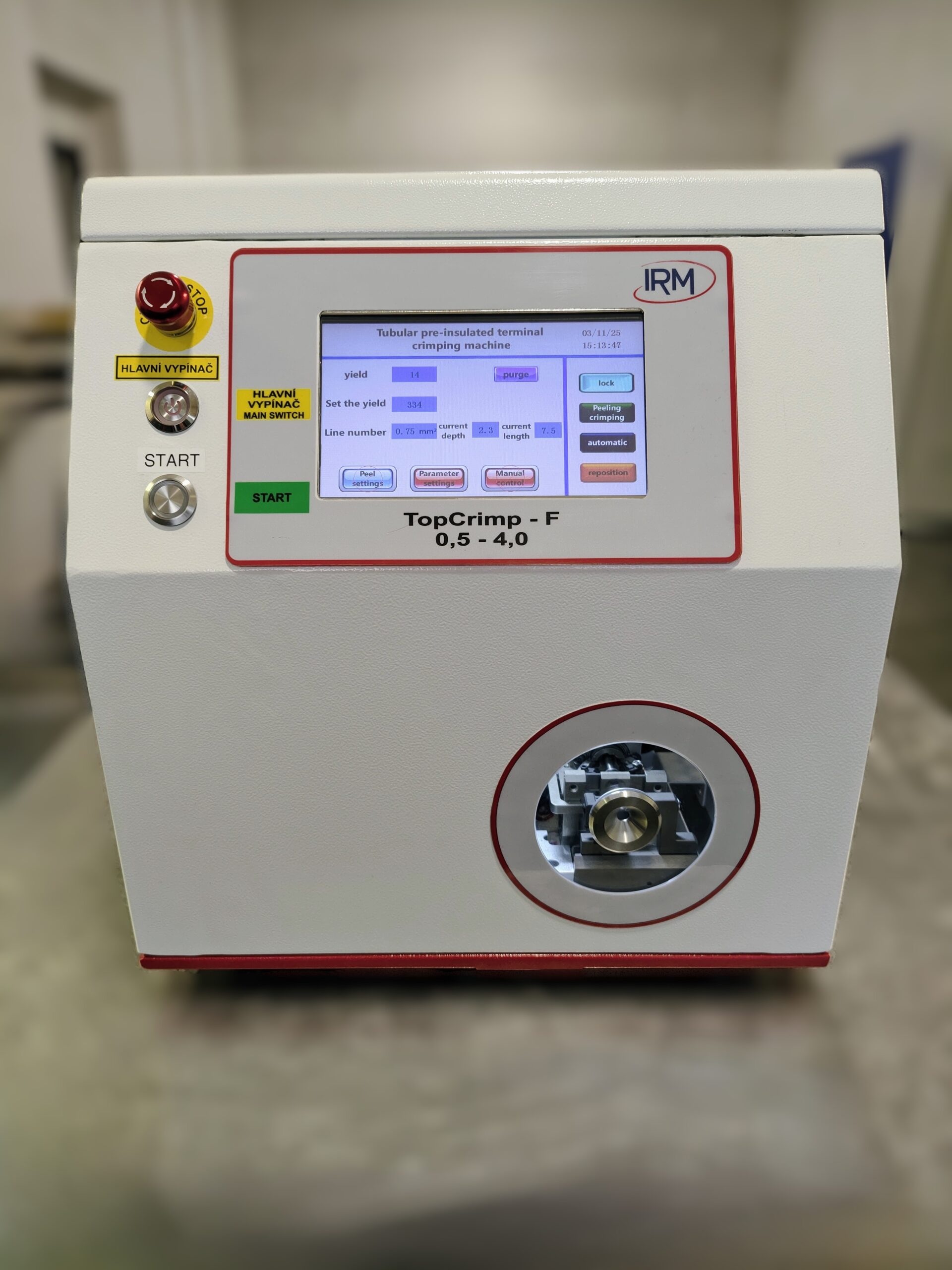

- All parameters can be set using the touch screen

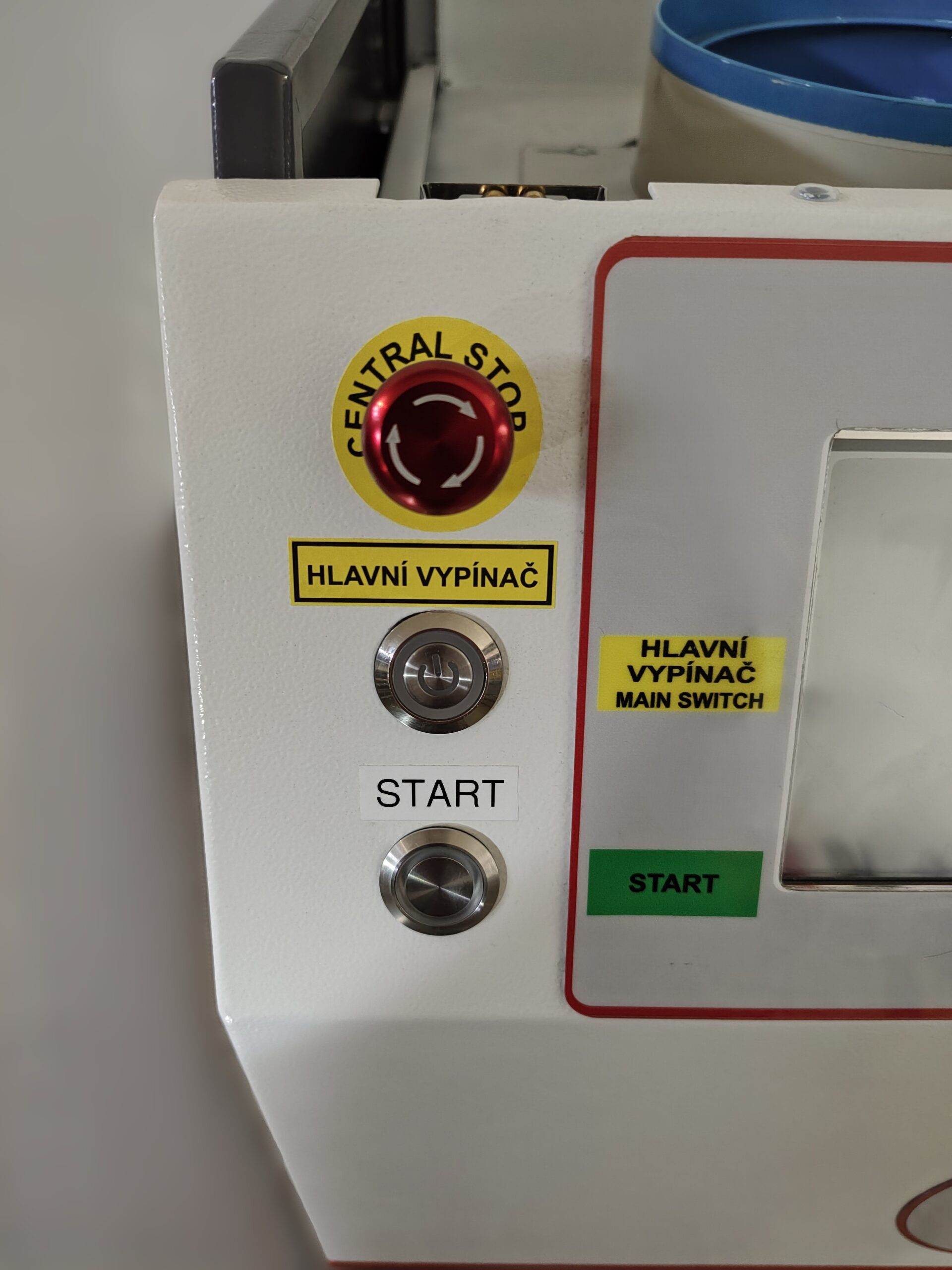

- The process can be started automatically with the start sensor or manually with the button
- Step mode option
- Machine requires electrical and compressed air connection
- Electrical connection 230 VAC/ 50Hz
- Air supply 5 - 8 bar
